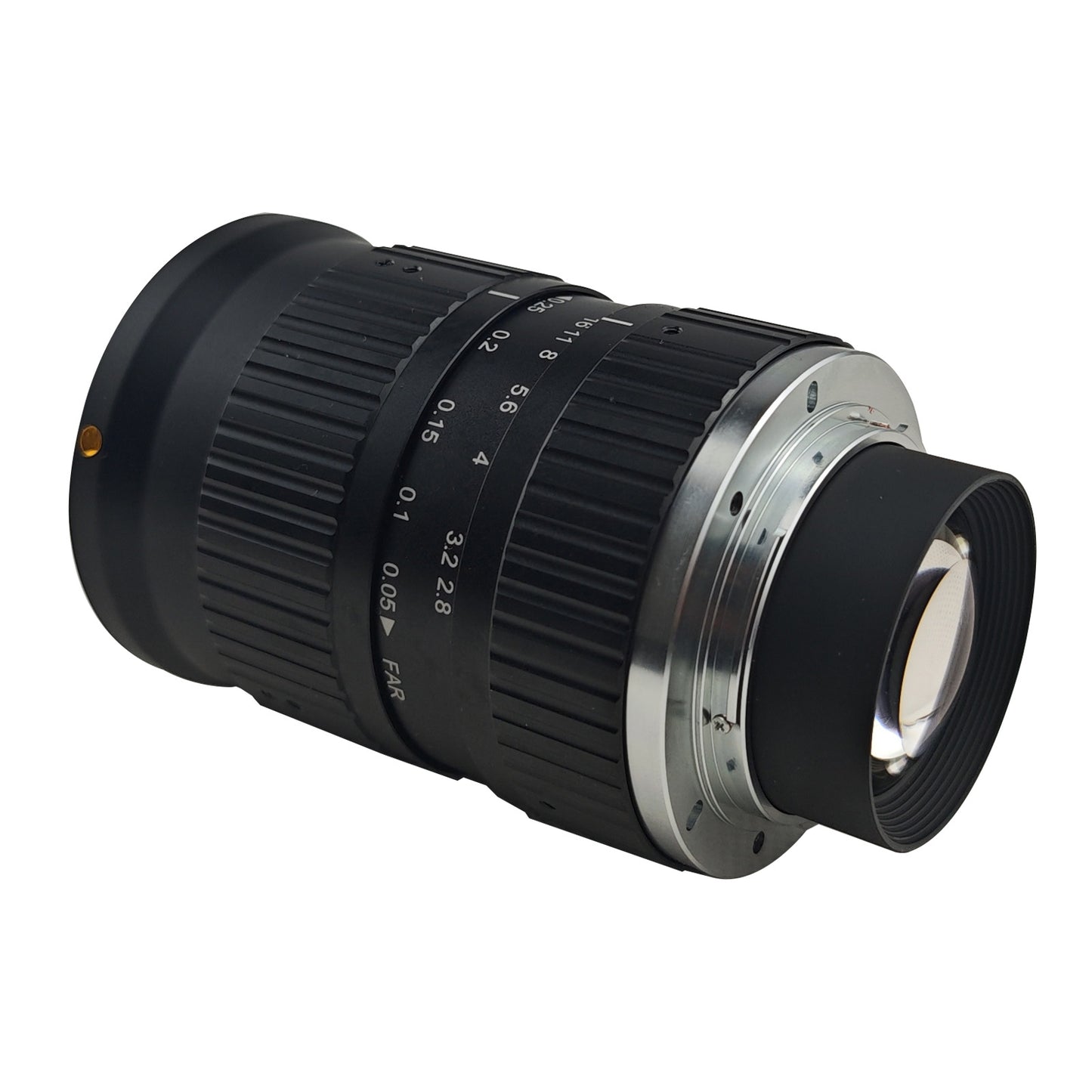

KRL3528-F

Name: KRL3528-F
Brand: KeepReal
Price: 403.00 USD
Availability: InStock

$403.00 USD

~~$465.00 USD~~ $403.00 USD

Sale Sold out

◆Brand：KeepReal

◆Specifications： Φ45mm f=35mm F mouth

◆29MP adaptation 5 μ/7 μ Large pixel camera

◆Optimize optical design for different magnifications

◆Low distortion, high resolution, high illumination

◆Optical performance superior to DSLR camera lenses

◆Suitable for PCB, lithium battery, printing and packaging inspection, etc

Full frame ( Φ45mm）35mm Focal length F-port lens
Model			KRL3528-F
Max Image Circle			Φ45
Focal length			35mm
F No.			F2.8-16
Distortion			<0.4%
Operation		Iris	Manual
		Focus	Manual
Focus distance(min)			125.5mm（0.25X）
Mount			F-Mount
Flange BFL			46.5mm
Dimension			Φ61×81.5mm
Filter			M58x 0.75
Working Temperature			-20ºC ～ +60ºC
Working Distance(mm)	Optical Magnification		Conjuguate Distance(mm)	(FlangeBFL)
728.7±5	0.05X		850.8±9	46.5mm
350.9±5	0.10X		474.5±9	46.5mm
163.0±5	0.20X		289.5±9	46.5mm
