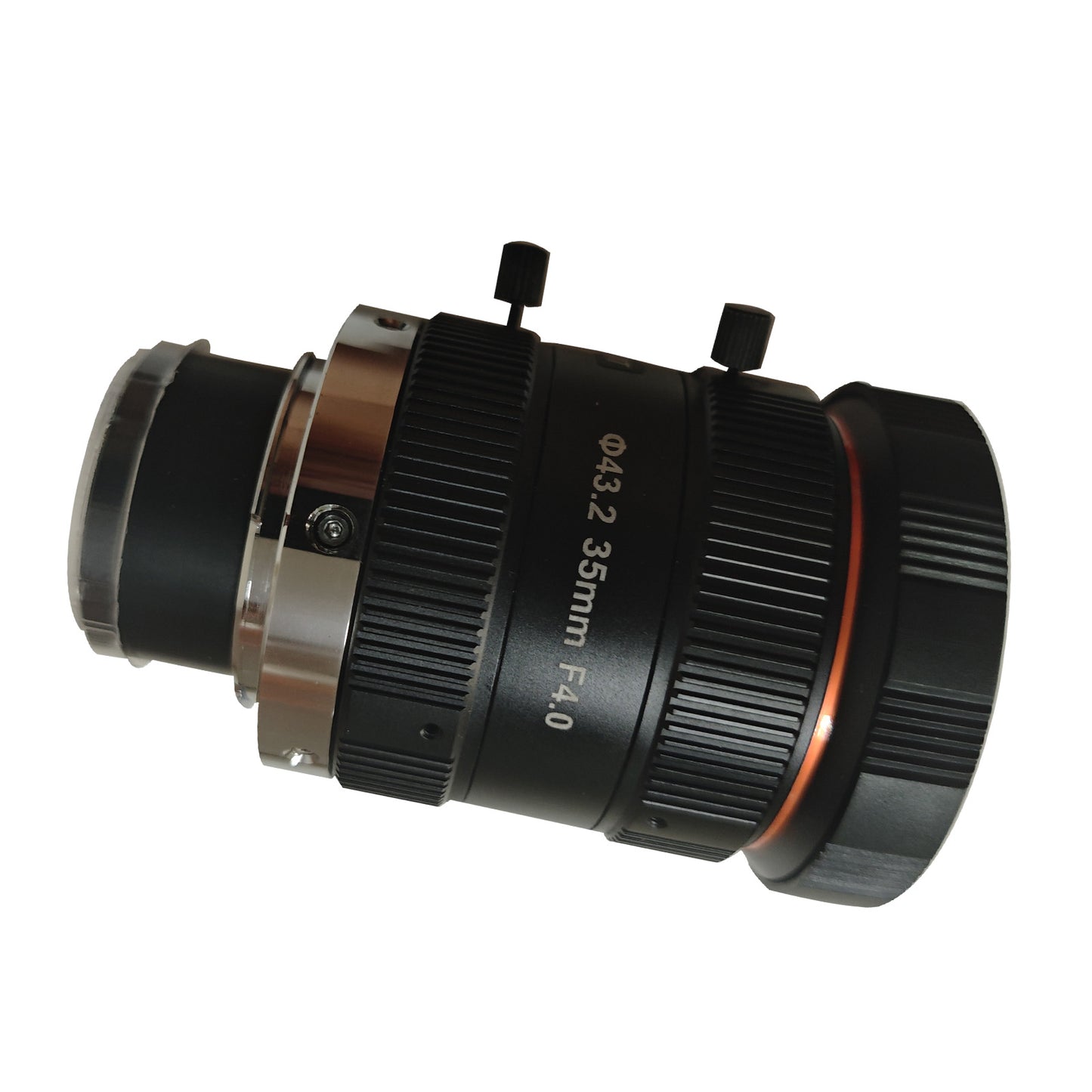

KRL3540-F
KRL3540-F
Regular price
$393.00 USD
Regular price
$452.00 USD
Sale price
$393.00 USD
Technical Specifications
|
Optical parameters |
|
|
Image size |
φ43.2mm Large target area |
|
Focal length |
35mm Fixed focal length |
|
Aperture Range |
F4.0-F16 manual adjustment |
|
Distortion |
0.46% |
|
Magnification |
0.050x-0.001x |
|
Physical parameters |
|
|
Working distance |
700~ infinity±5mm |
|
Image distance |
816~ infinity±9mm |
|
Filter mount |
052XP0.75 thread |
|
Interface type |
F-Mount |
|
Environmental parameters |
|
|
Operating Temperature |
-10℃ ~ 50℃ |
|
Overall dimensions |
φ61x67.12~73.62mm |
This lens is suitable for 8K5U line array cameras and full-frame array cameras, featuring high resolution and low distortion, and is ideal for high-precision imaging requirements in the field of machine vision.
Field of view
| working distance mm |
magnification |
Image distance mm |
field of view H(36.17mm) |
field of view V(24.11mm) |
field of view H(8k5μm) |
| 700 | -0.050 | 820 | 730.0 | 485.7 | 826.4 |
| 750 | -0.046 | 870 | 783.4 | 521.4 | 886.6 |
| 800 | 0.043 | 920 | 836.7 | 557.0 | 946.8 |
| 850 | -0.041 | 969 | 890.1 | 592.7 | 1007.0 |
| 900 | 0.039 | 1019 | 943.5 | 628.4 | 1067.2 |
| 950 | -0.036 | 1069 | 996.8 | 664.1 | 1127.4 |
| 1000 | -0.035 | 1119 | 1050.2 | 699.8 | 1187.6 |
| 1100 | -0.031 | 1218 | 1156.9 | 771.2 | 1308.0 |
| 1200 | -0.029 | 1318 | 1263.7 | 842.6 | 1428.5 |
| 1300 | -0.026 | 1418 | 1370.4 | 913.9 | 1548.9 |
| 1400 | 0.025 | 1517 | 1477.1 | 985.3 | 1669.3 |
| 1500 | -0.023 | 1617 | 1583.9 | 1056.7 | 1789.7 |
