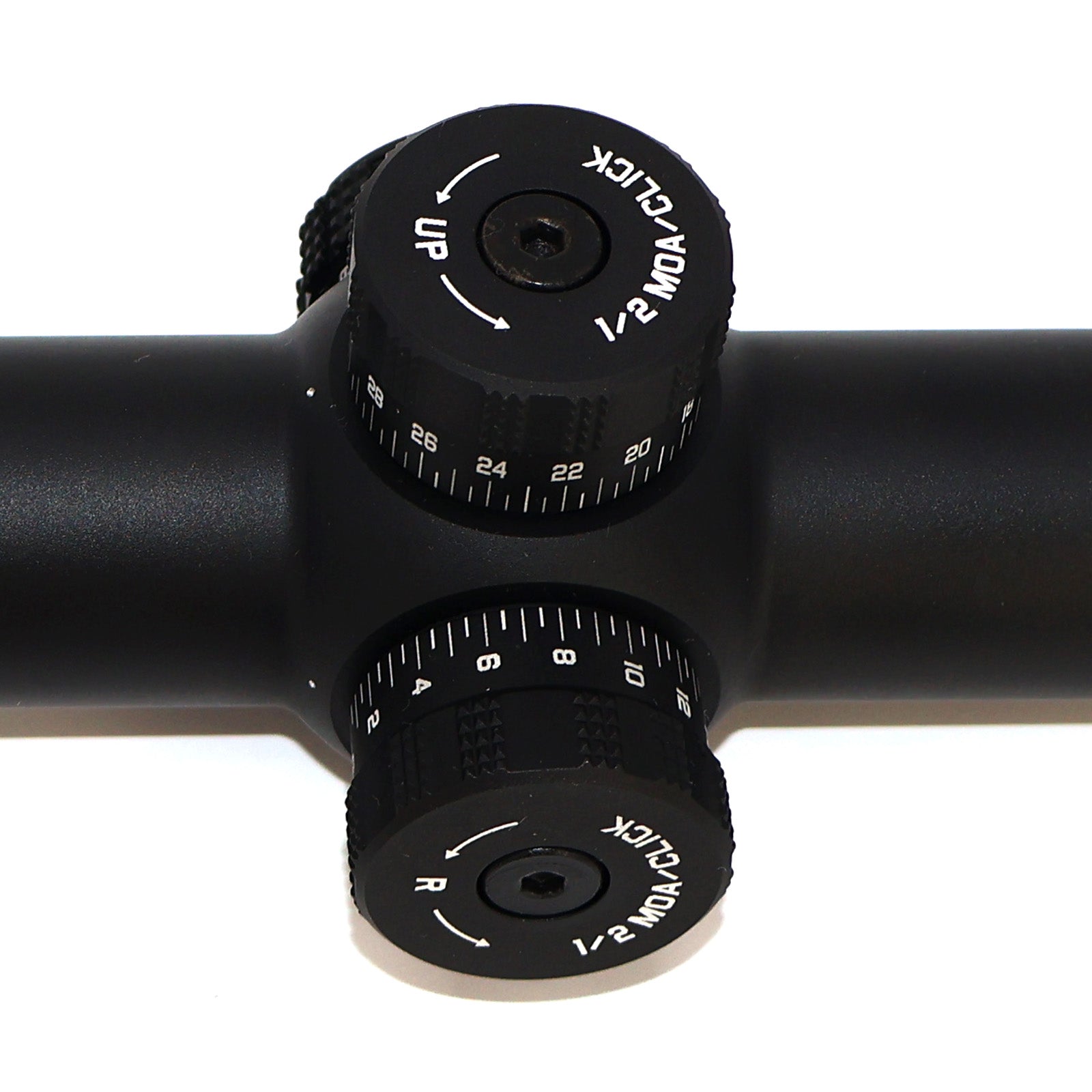

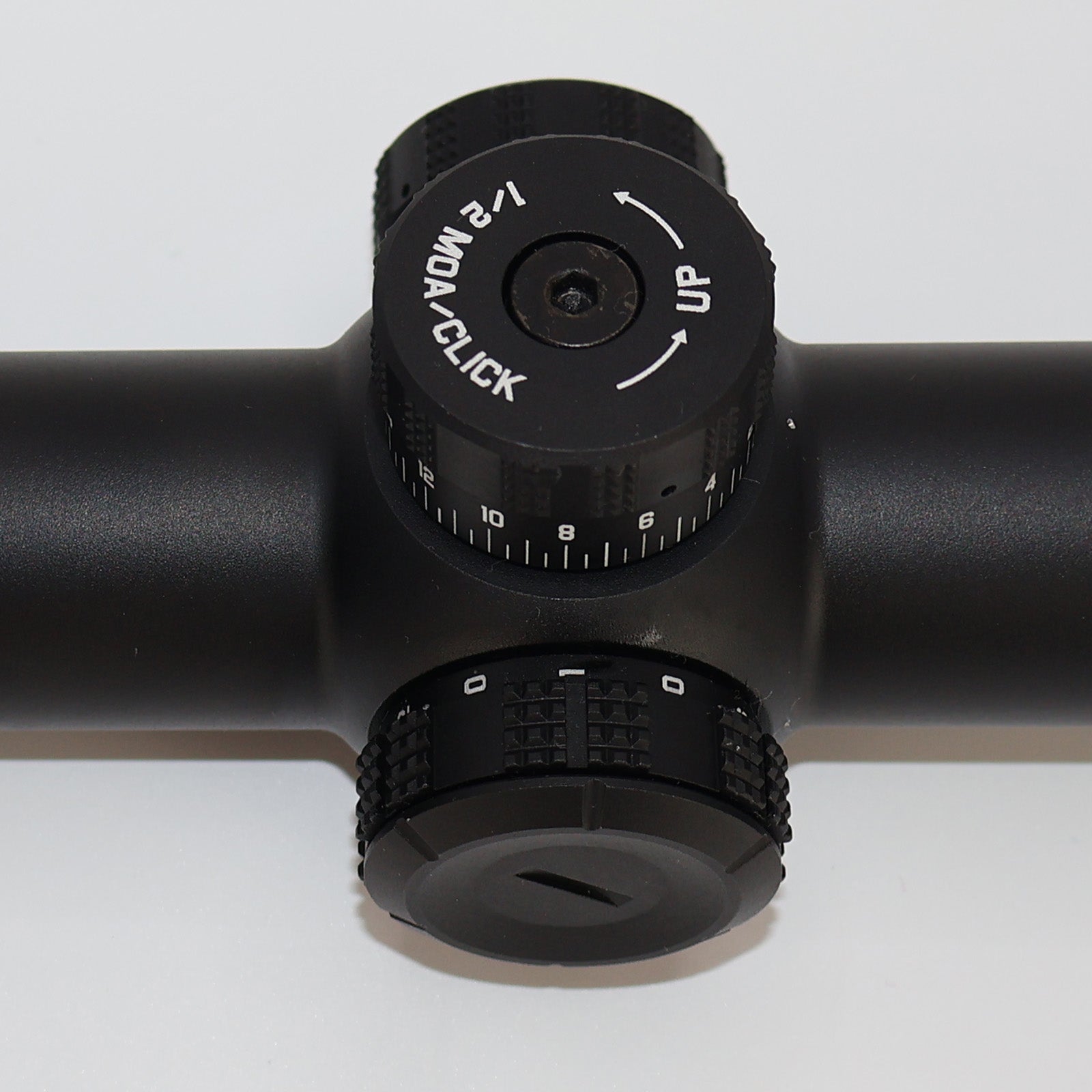

Magnification:10x——1x Effective objective diameter (mm) :24——9.4 Exit pupil diameter (mm) :2.4——8.9 Eye relief (mm):81.5——86 Field of view Feet@100Y :12——114.2 Diopter adjustment :-2.3——+2.2 Center tube diameter :30mm Water proof （Yes/No） :YES Elevation travel (MOA) :±65 Windage travel (MOA) :±65 Click value :1/2 MOA Parallax Compensation :100Y Ocular tube diameter (mm) h :Φ43.5 Length (mm) :276 Weight (g) :550 FFP or SFP: SFP

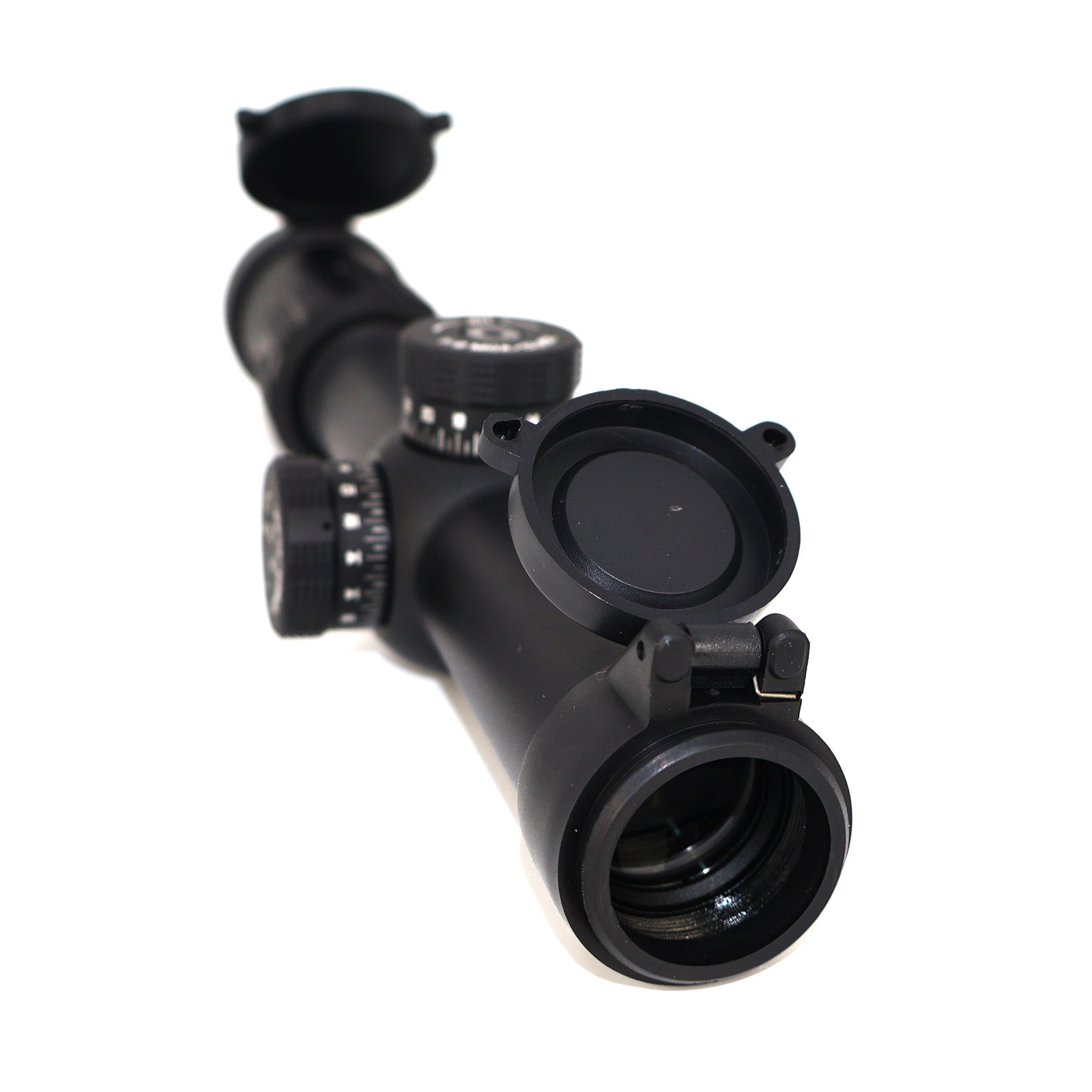

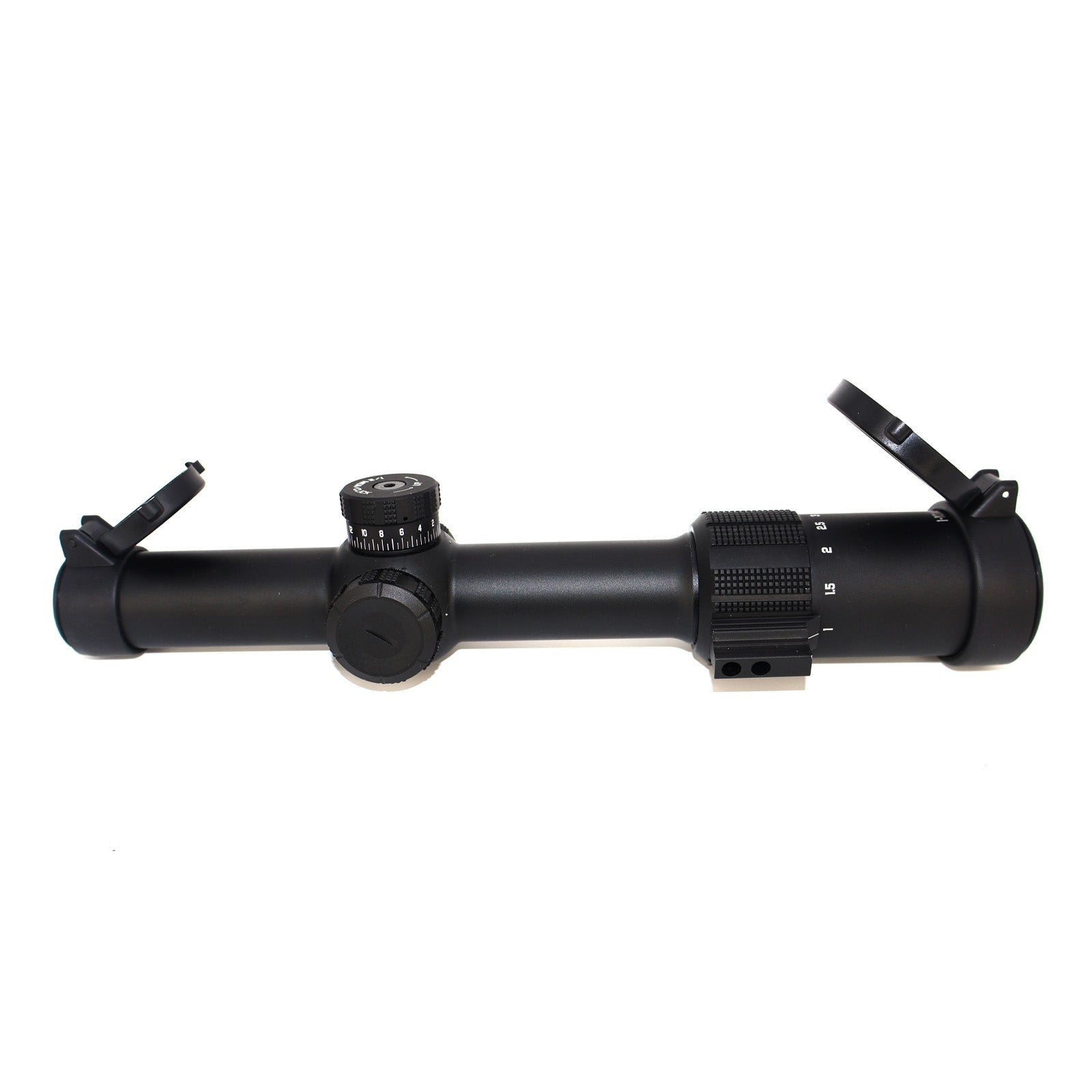

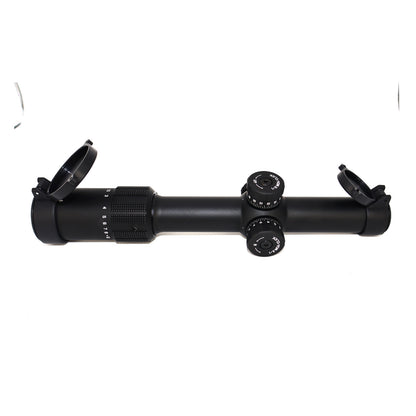

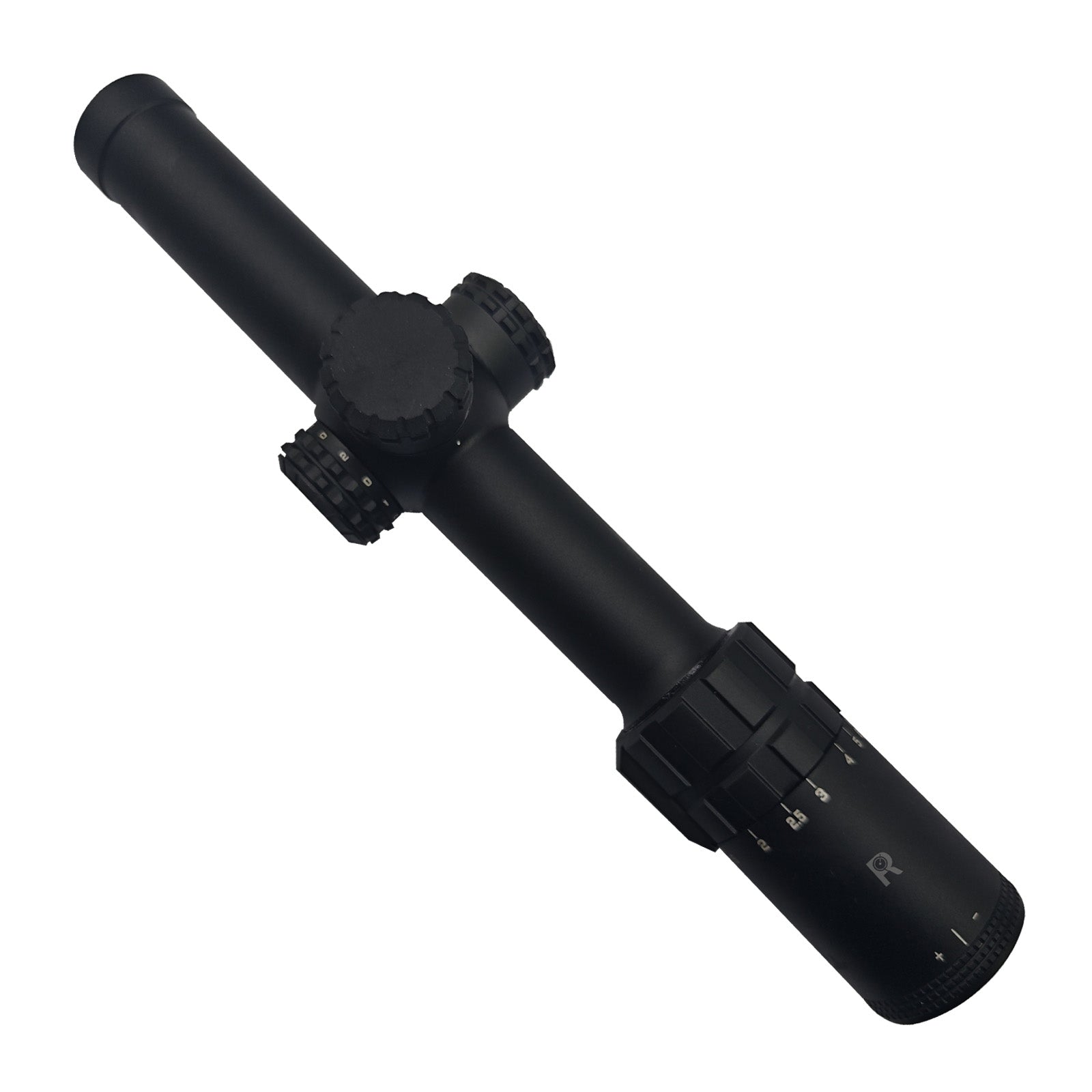

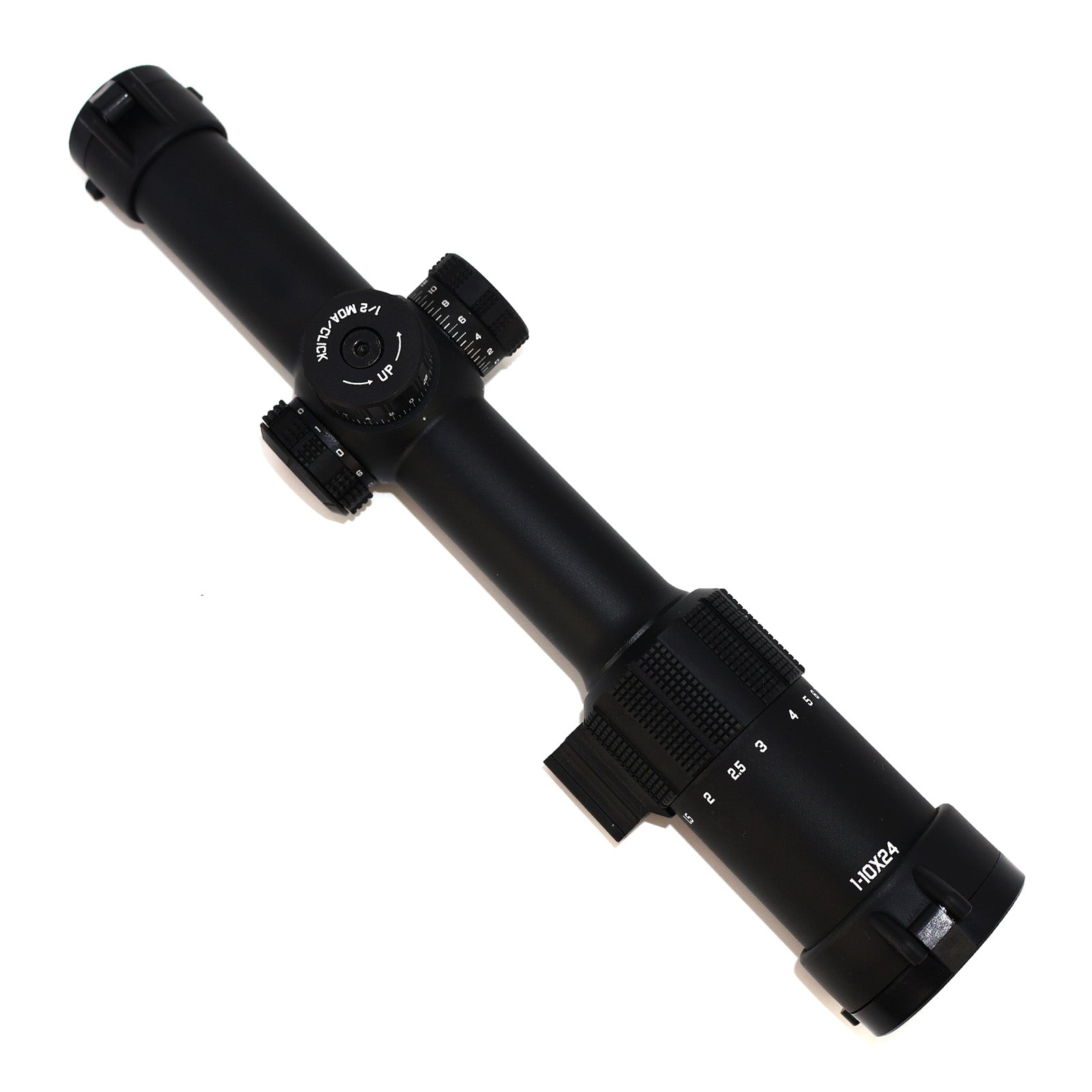

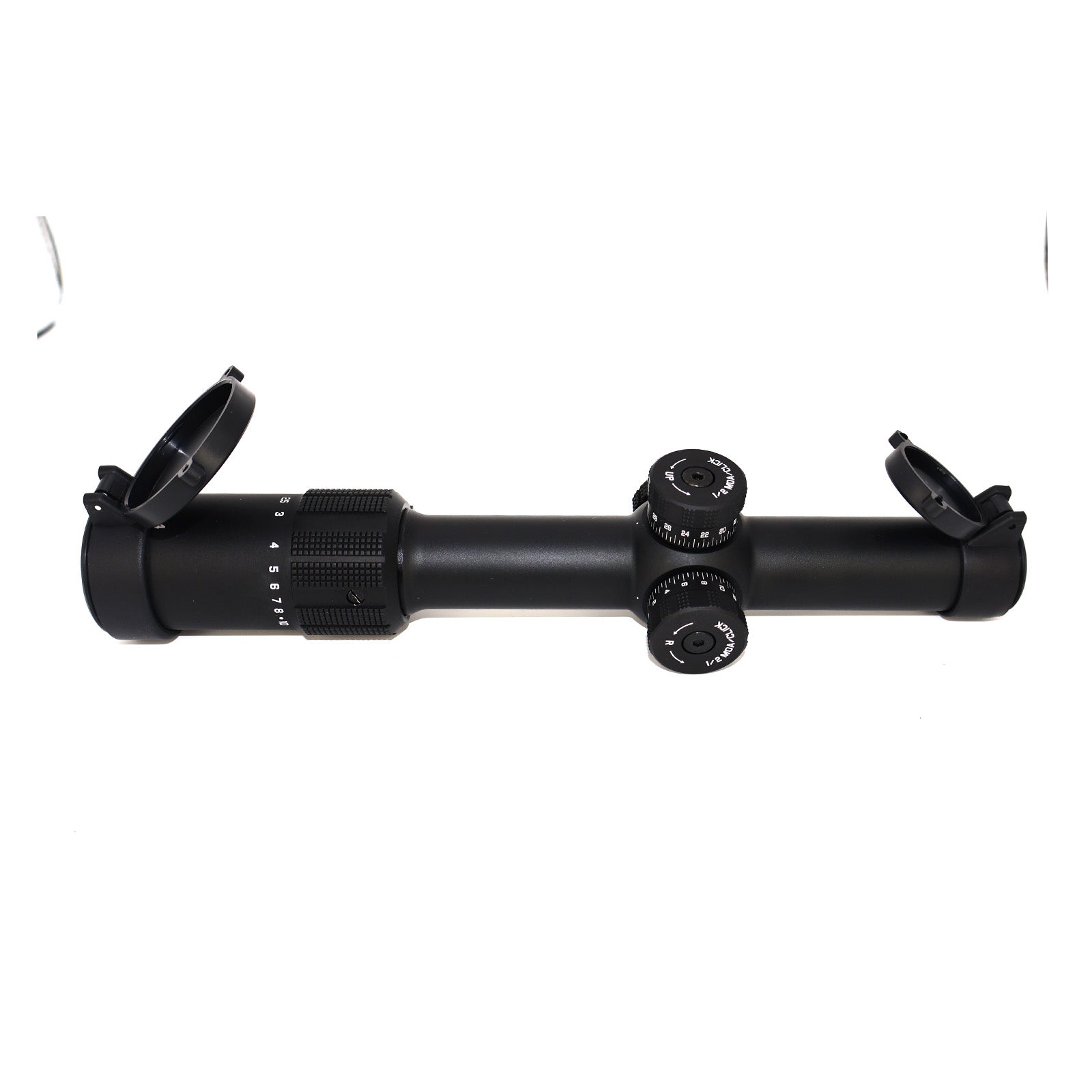

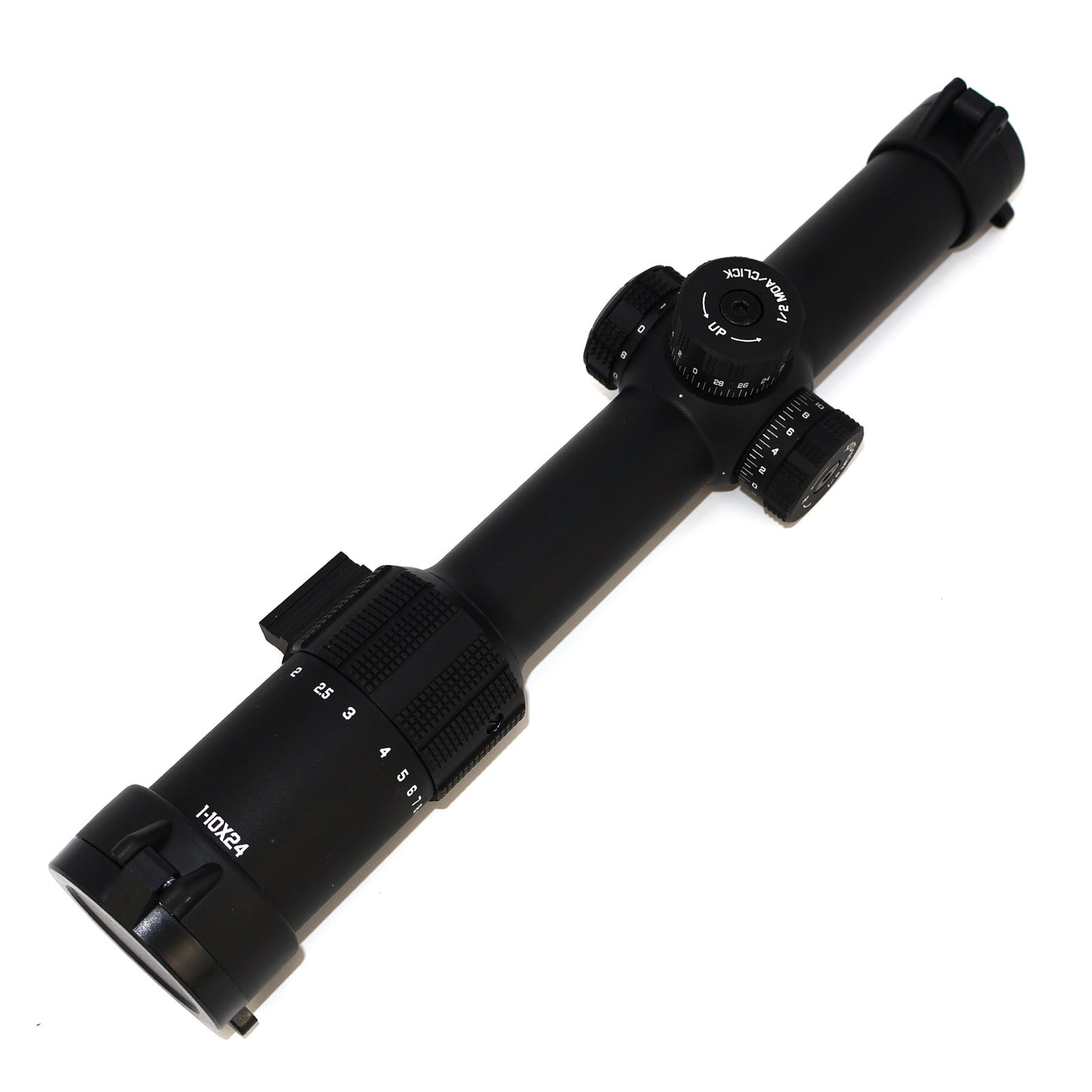

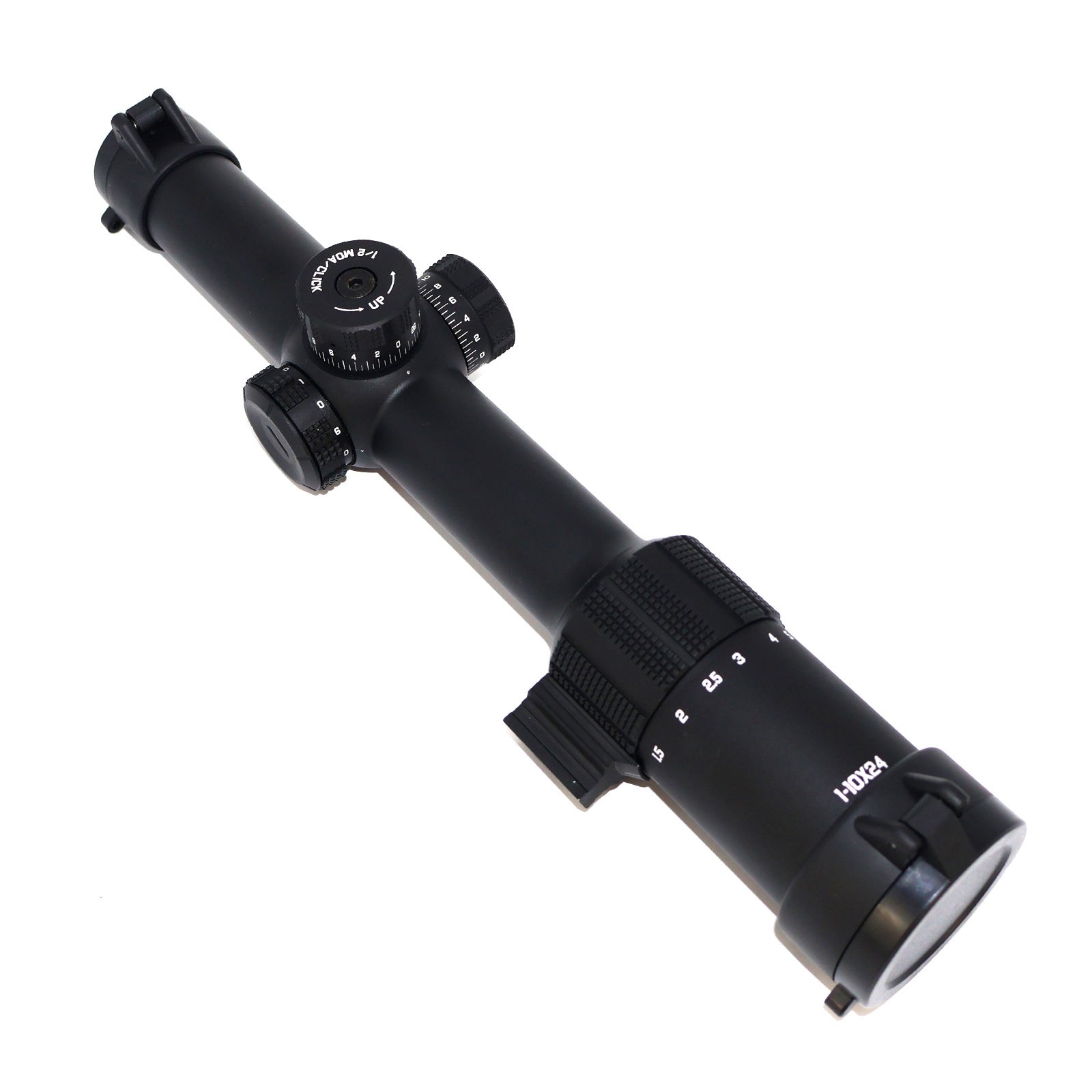

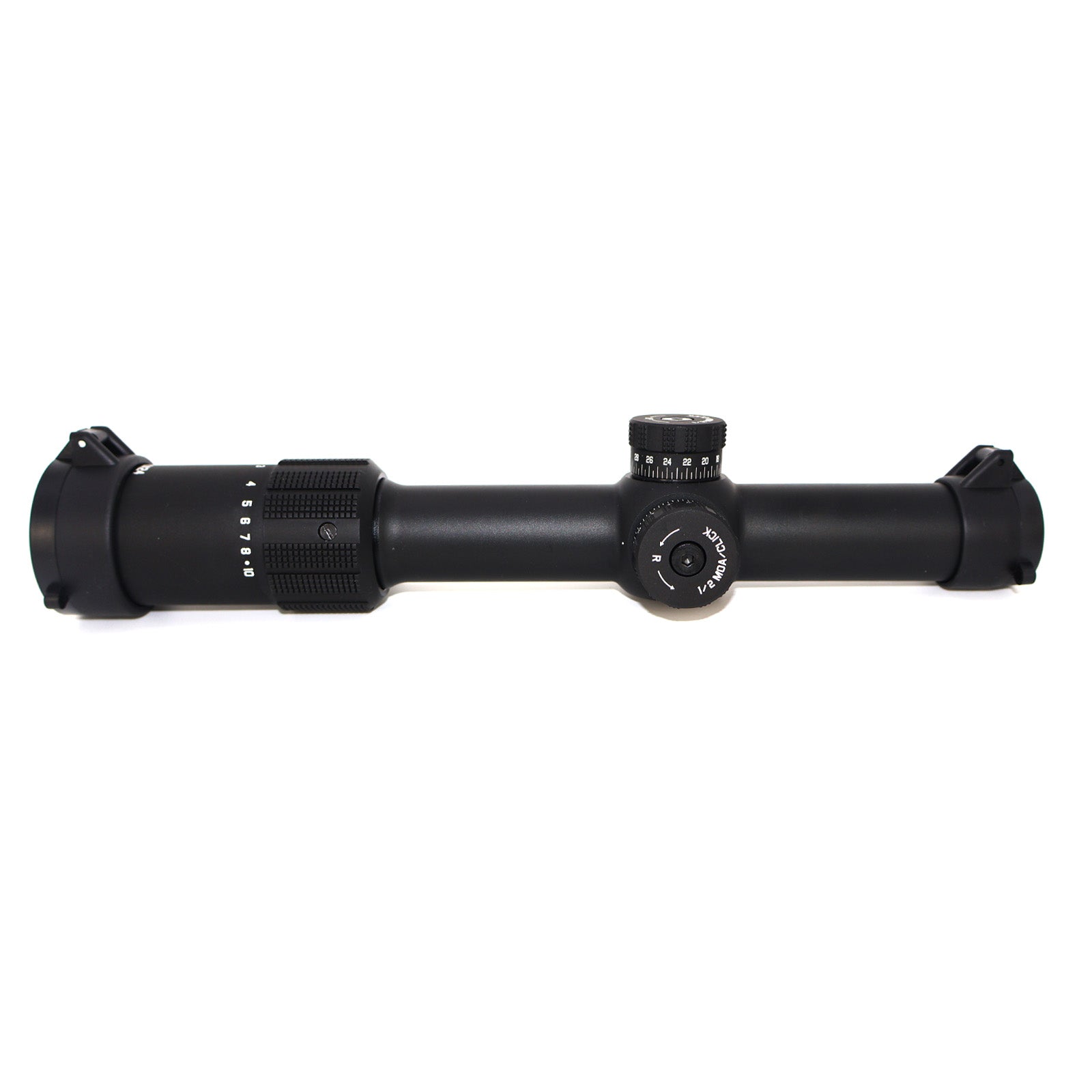

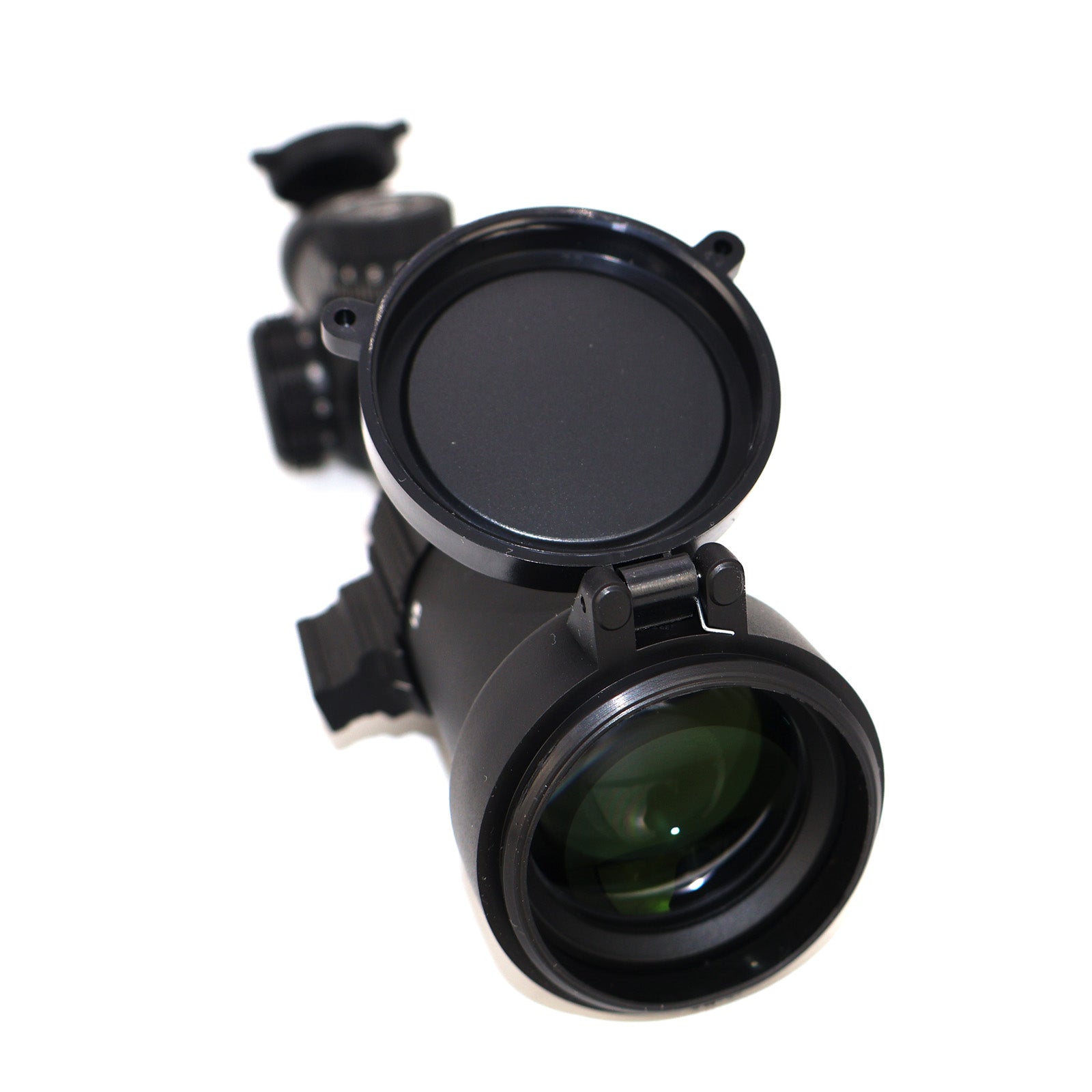

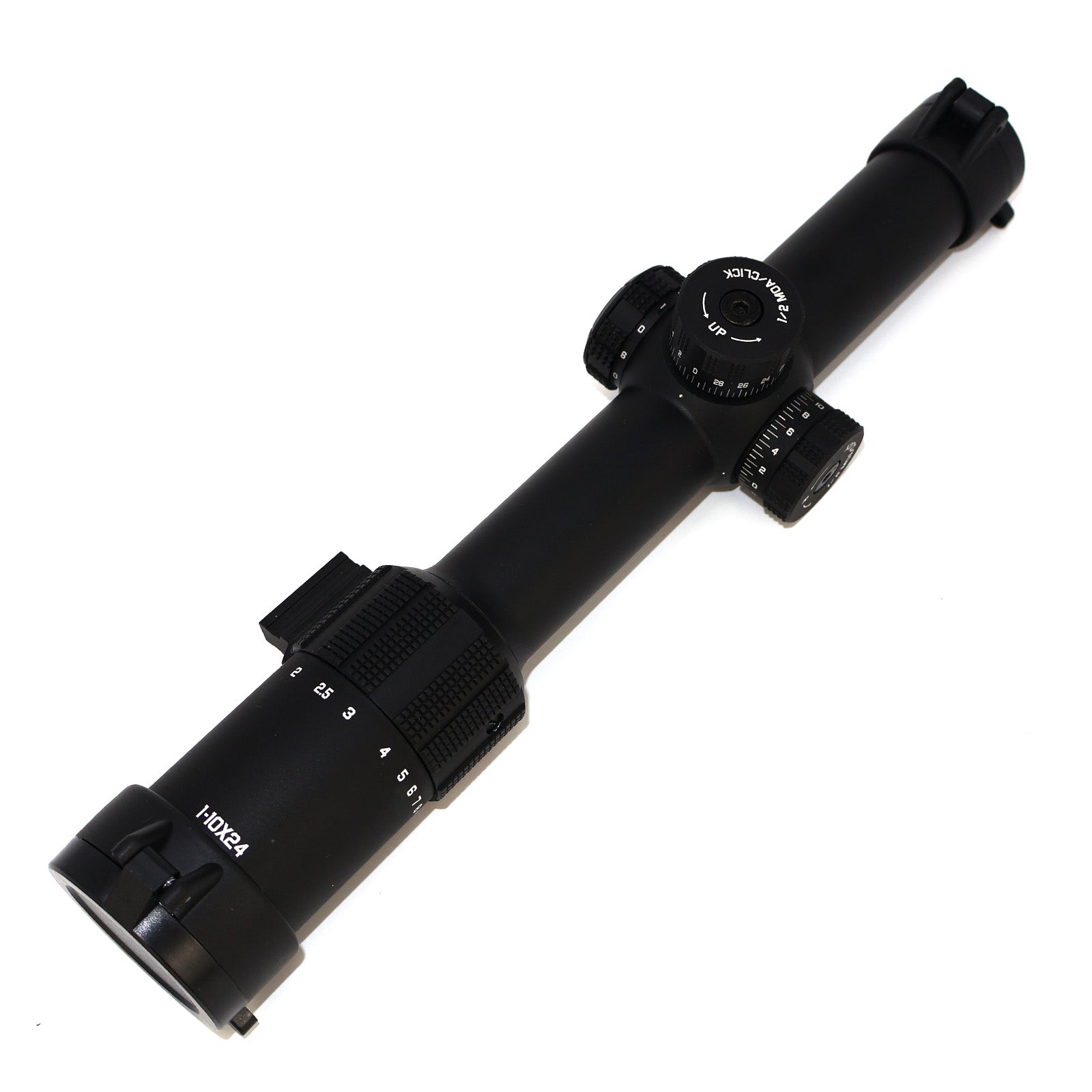

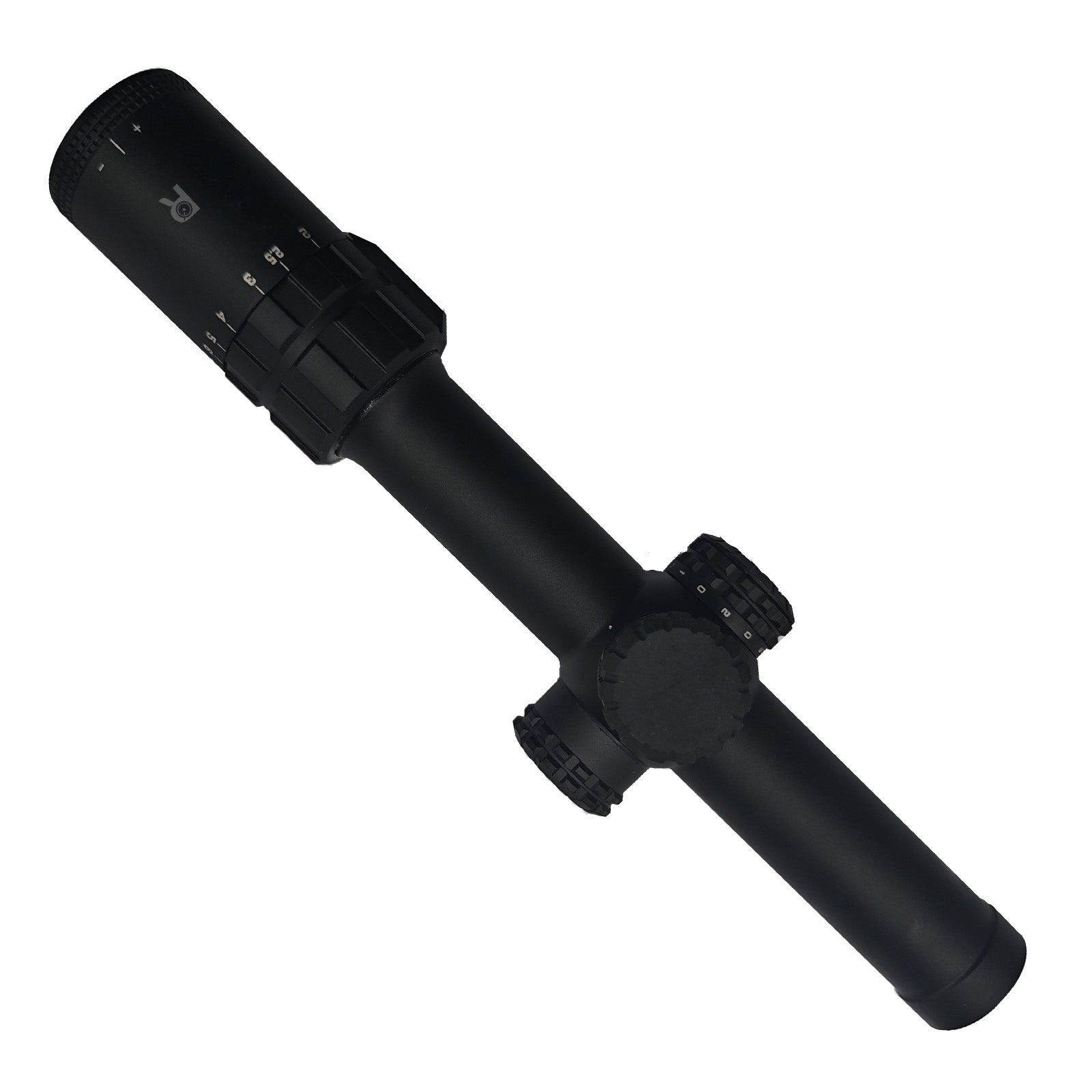

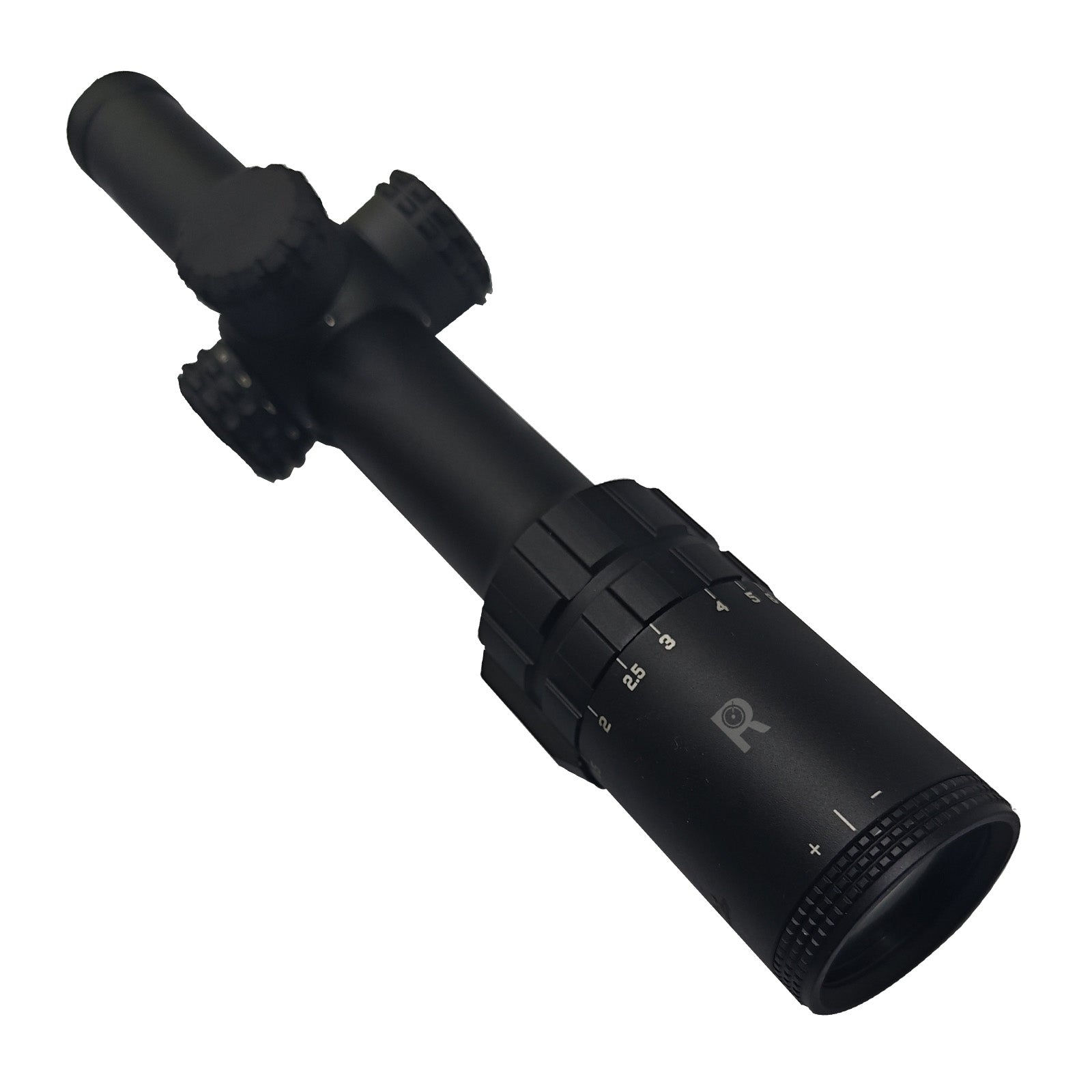

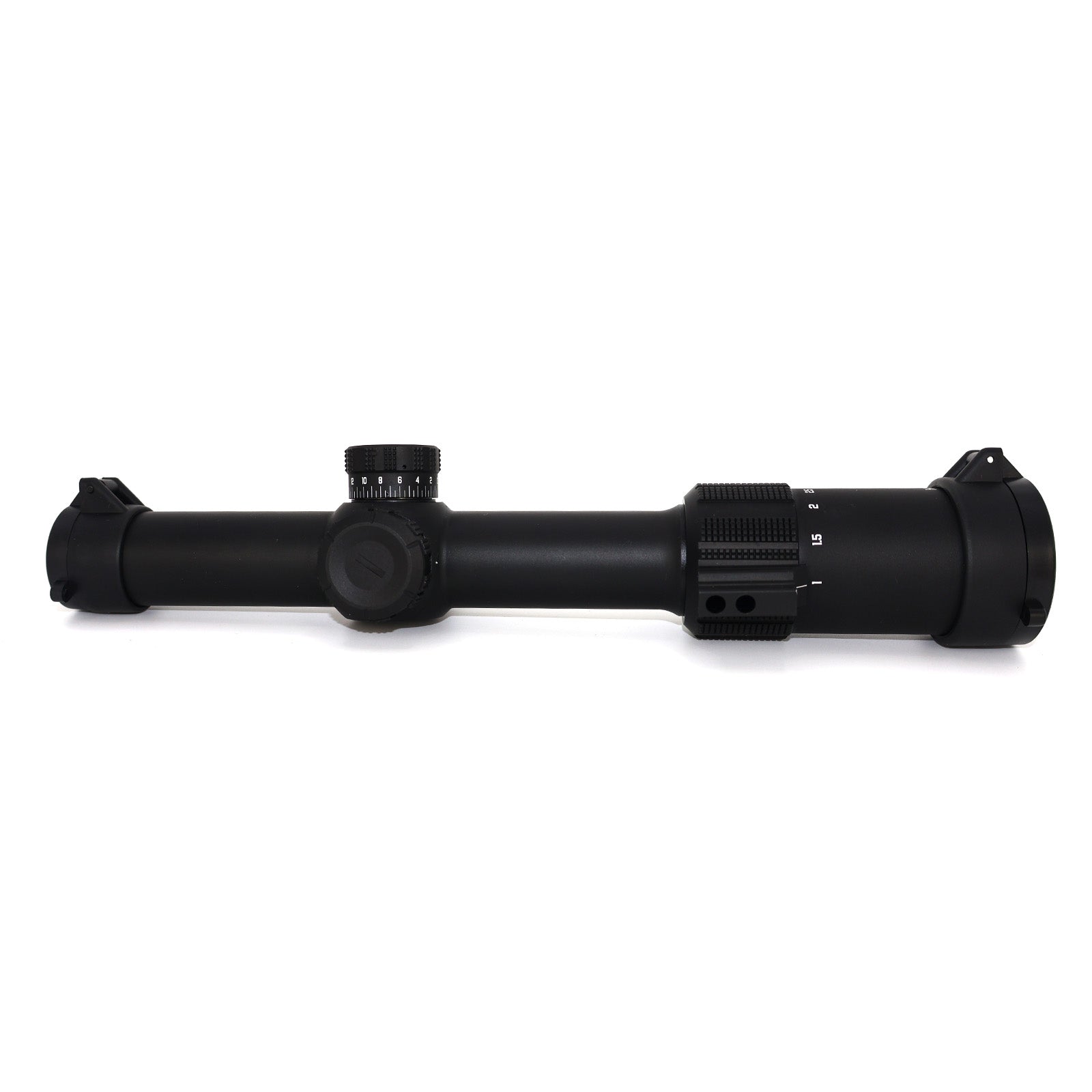

The sight is a variable magnification sight, with the "1-10" in its model indicating the magnification range (from 1x to 10x), and "24" representing the objective lens diameter (24mm). Here is a product introduction for this type of sight: Main features Variable magnification design: With a true magnification range of 1-10 times, it can achieve rapid close-range target acquisition at 1x magnification, suitable for scenarios such as close quarters battle (CQB), and can also perform precise long-range aiming at 10x magnification, meeting shooting needs from ultra-close to long-range without the need to change the sight. Excellent optical performance: The use of multi-layer coated lenses effectively reduces light reflection on the lens surface and enhances light transmittance, ensuring high contrast and clear images even in low-light conditions. Reticle design: The reticle of the sight also features dual-color (red and green) illumination, with multiple illumination brightness levels, making it convenient to use under different lighting conditions. Durable and Robust: Made of 6061-T6 aviation-grade aluminum alloy, it boasts excellent strength and corrosion resistance. The lens barrel, with a diameter of 30mm, offers a wider internal adjustment range and enhanced durability. Additionally, it features waterproof, dustproof, and anti-fog capabilities, achieved through O-ring sealing and nitrogen filling. After rigorous factory testing, it possesses high shock resistance.
